corrugated pipe machine
Corrugated tube machine

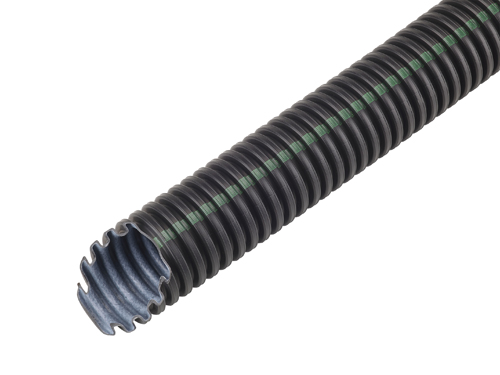

Double layer corrugated plastic conduit making machine
Application: corrugated plastic conduit with low-friction inner surface
Extrusion line
extrusion method: two type of extrusion available: pressure and vacuum
corrugated pipe machine
Corrugated conduit extrusion machine

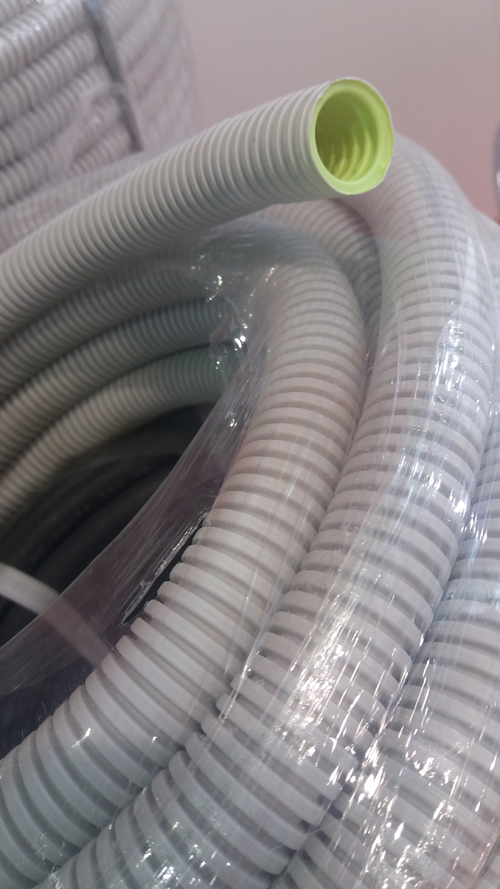

extrusion line for corrugated double layer pipe
two types of pipe corrugator:
Internal blow moulding
Vacuum forming

Blow Moulding:
This technology consist of blowing low pressure (0,1-1,5 bar) through the die head spider into the center of the continuously extruded hot plastic tube. The air is retained by a plug with metallic or silicone washers.
The hot plastic material is expanded by the internal air pressure against the corrugation machined in the mould blocks which chill and holds the tube against the moulds to provide the desired geometry. Corrugated products formed by internal air must have constant I.D. dimension.

Vacuum forming:
This technology consists of pulling the hot plastic tube against the mould blocks by vacuum suction applied through the moulds applied to the plastic tube outside diameter surface. Vacuum from the moulds keep the tube against the moulds to provide the desired geometry. Corrugated products formed by vacuum may have variable I.D. dimensions.

Applications

    cable protection
    TV, telephone
    glass fiber
    electricity
    control and computer cables
    automobiles, machines and airplanes
    medical applications
    washing machines
    dishwashers





Machinery for production of siphon corrugated pipe
Machine for medical corrugated tubing
Machine for corrugated flat/round PE/PP post tensioning duct
Machinery for corrugated PA tubing
Extrusion line for pre-wired corrugated PP conduit
Double layer corrugated pipe extrusion machine
Double wall HDPE electrical duct extrusion line
Corrugated duo pipe extrusion machine
Multilayer corrugated PA tube machine
flat corrugated pipe/duct machine
perforated corrugated pipe machine
Extrusion line for corrugated sink waste pipe
