Pipe extrusion line
Corrugated pipe machine, PE/PVC/PP/PA corrugated pipe line
Model C-15 C-58 C-65 C-75 C-90 C-110
Max. Outer Diameter (mm) 15 58 65 75 90 110
Min. Inner Diameter (mm) 4.5 8 10 30 30 30

Extrusion line for the production of single-wall corrugated tubes and pipes made of PE, PP, PVC, PA, EVA, PVDF, TPE etc.

The range includes: Water cooling corrugator, Blow forming system corrugator, Vacuum forming system corrugator, Sequential mode corrugator, Variable Chain Length corrugator. corrugators systems for pipes with interior diameters from 4.5 mm and exterior diameter ranging up to 110 mm in a variety of thermoplastics..

Corrugators by size, ID4.5mm to OD15mmm, ID8mm to OD58mm, ID10mm to OD65mm, ID30mm to OD75mm, ID30mm to OD90mmI D30mm to OD110mm

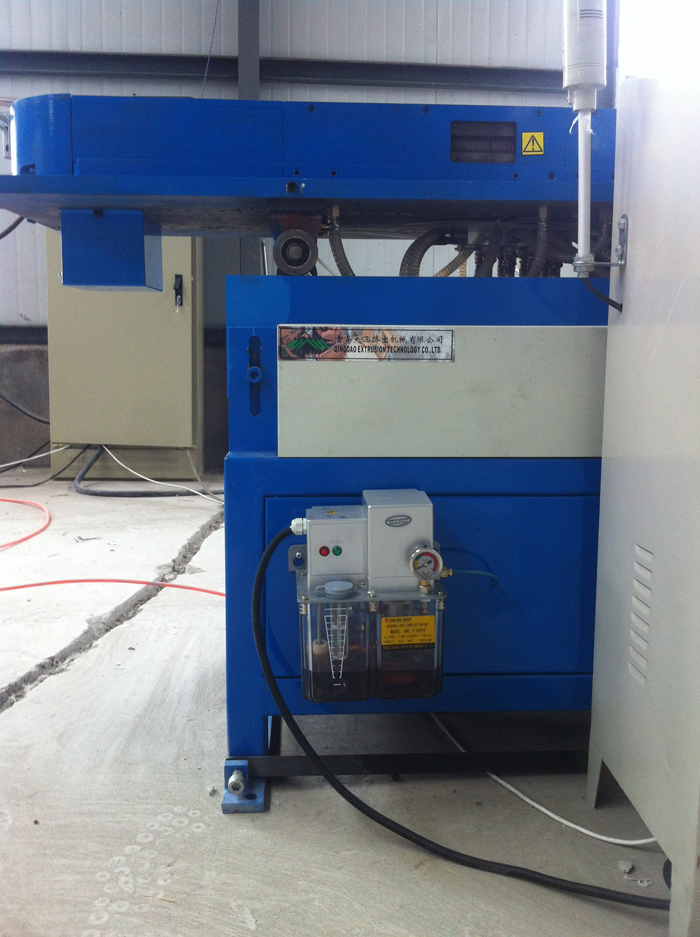

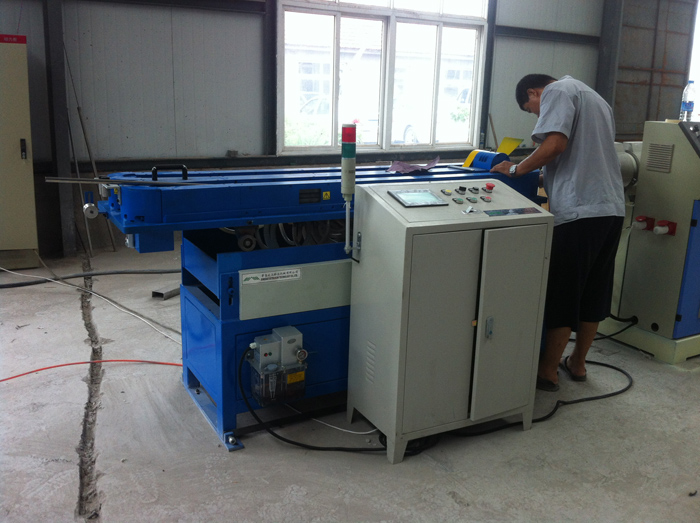

corrugated pipe machine

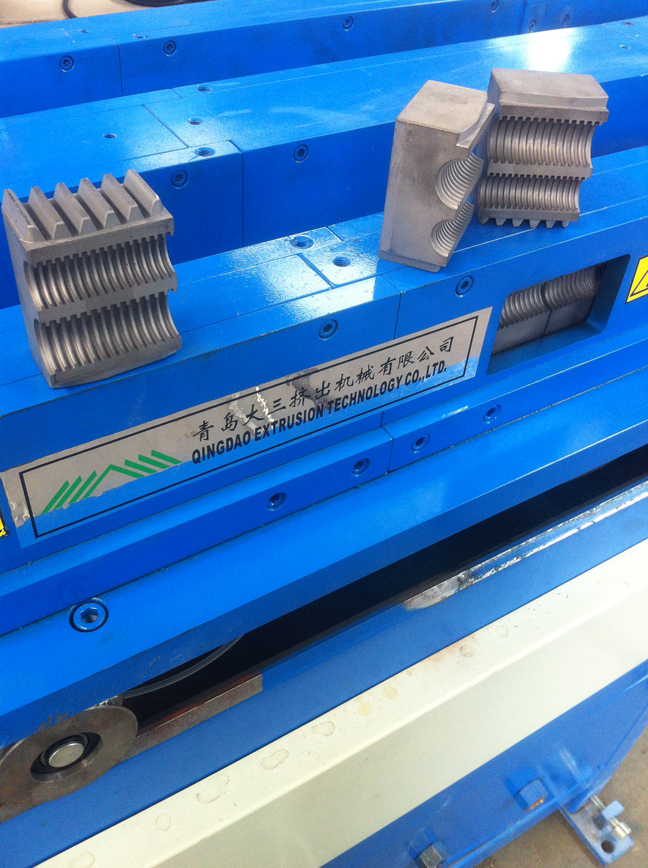

two types of pipe corrugator:
Internal blow moulding
Vacuum forming

Blow Moulding:
This technology consist of blowing low pressure (0,1-1,5 bar) through the die head spider into the center of the continuously extruded hot plastic tube. The air is retained by a plug with metallic or silicone washers.
The hot plastic material is expanded by the internal air pressure against the corrugation machined in the mould blocks which chill and holds the tube against the moulds to provide the desired geometry. Corrugated products formed by internal air must have constant I.D. dimension.

Vacuum forming:
This technology consists of pulling the hot plastic tube against the mould blocks by vacuum suction applied through the moulds applied to the plastic tube outside diameter surface. Vacuum from the moulds keep the tube against the moulds to provide the desired geometry. Corrugated products formed by vacuum may have variable I.D. dimensions.

Applications

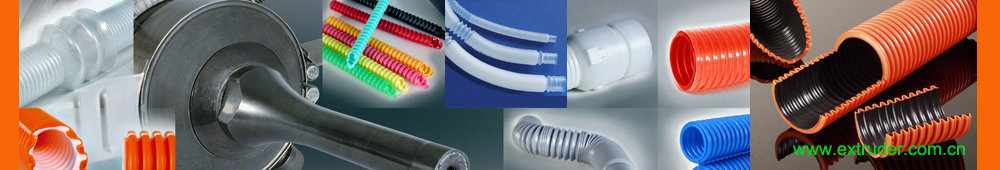

  • cable wire protection (in the building, telecommunications and car industry))
  • TV, telephone
  • glass fiber
  • electricity
  • control and computer cables
  • automobiles, machines and airplanes
  • medical applications

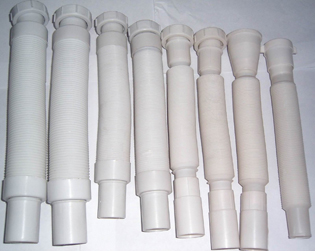

  • washing machines
  • dishwashers





pipe corrugatorcorrugator machine
